>> A << Windshield Wiper Link Assembly Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Confirm that the wiper motor has set to automatic stop position (Refer to WINDSHIELD WIPER MOTOR CHECK ).
CAUTION: Always replace the wiper motor link plate with new one.

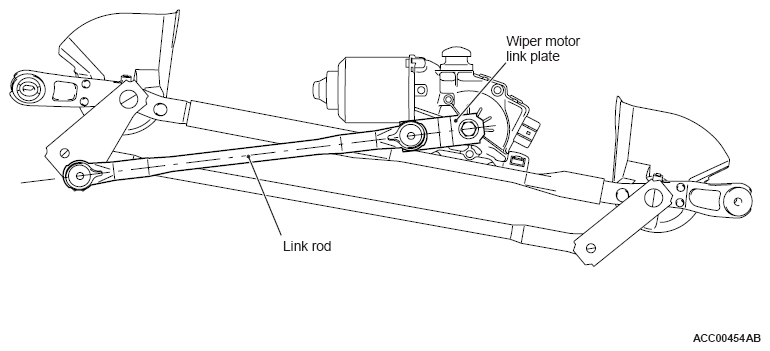

Fig 1: Identifying Wiper Motor Link Plate And Link Rod
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Set the wiper motor link plate onto the wiper motor shaft. When doing this, the wiper motor link plate and the wiper link rod should be in line as shown.
NOTE: When the wiper motor link plate has slipped by even only one tooth on the wiper motor assembly, they cannot be in line.
Tighten the attaching nut of wiper motor link plate and wiper motor shaft. Use an appropriate tool to counter-hold the plate to prevent it from turning.
Apply grease to the inside of link rod joint (as required) and connect the link rod to wiper motor link plate.
Specified grease: Multipurpose grease SAE J310, NLGI No.2 or equivalent
Make sure that the rubber bushing of the windshield wiper linkage assembly is secured in the windshield wiper bracket.

Fig 2: Setting Wiper Motor Link Plate Onto Wiper Motor Shaft
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
