Windshield Wiper Motor At Stop Position Operation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the battery to the windshield wiper motor as shown in the illustration (A).
  2. Run the windshield wiper motor at low speed, then disconnect the battery in the middle of the motor rotation and check to see that the motor stops.
  3. Connect the battery to the windshield wiper motor as shown in the illustration (B).
  4. Connect the terminals of the windshield wiper motor connector as shown in the illustration (B).
  5. Check to see that the windshield wiper motor runs at low speed and then stops at the automatic stop position.

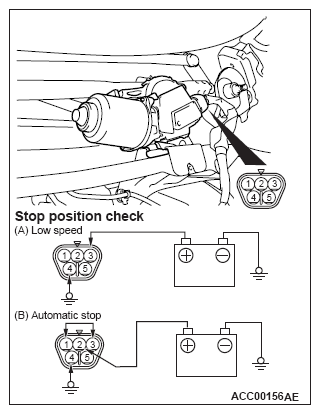

    Fig 1: Checking Windshield Wiper Motor At Stop Position Operation
    G09666376Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
