Windshield Wiper Motor At Low Or High Speed Operation
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
Connect the battery to the windshield wiper motor to inspect the operation of motor rotation at low or high speed.

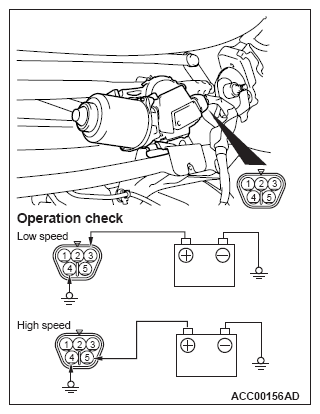

Fig 1: Checking Windshield Wiper Motor At Low/High Speed Operation
