Removal And Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

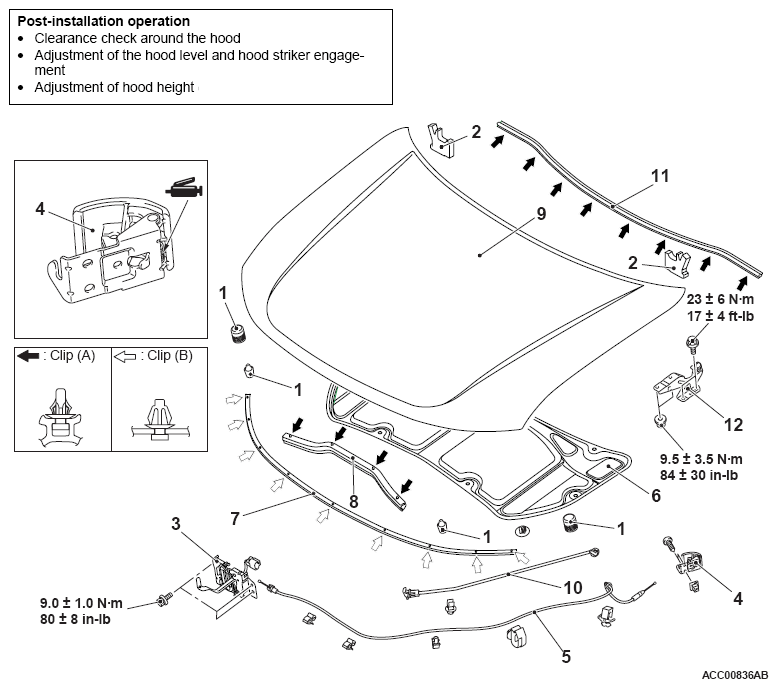

Fig 1: Removing/Installing Hood With Torque Specifications
G09666089Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

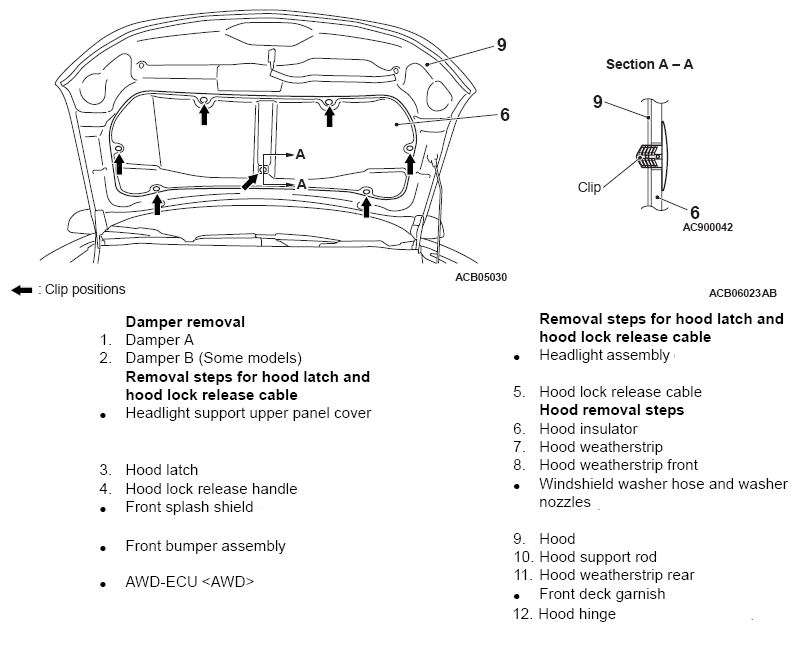

Fig 2: Identifying Callouts & Clip Positions For Removing/Installing Hood
G09666090Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
