Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The parts indicated by *1 are the bolts/nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.
  • The part indicated by *2 is the bolt/nut with friction coefficient stabilizer. In removal, replace it with new one.

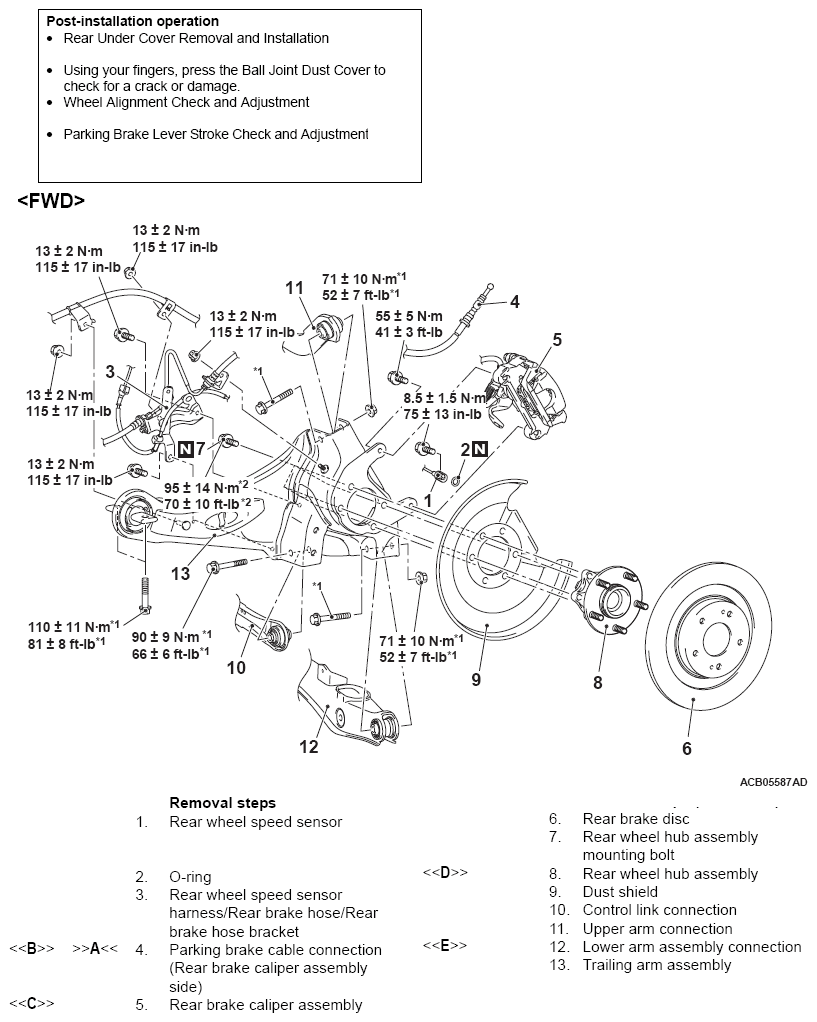

Fig 1: Removing/Installing Trailing Arm With Torque Specification (FWD)
G09665948Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

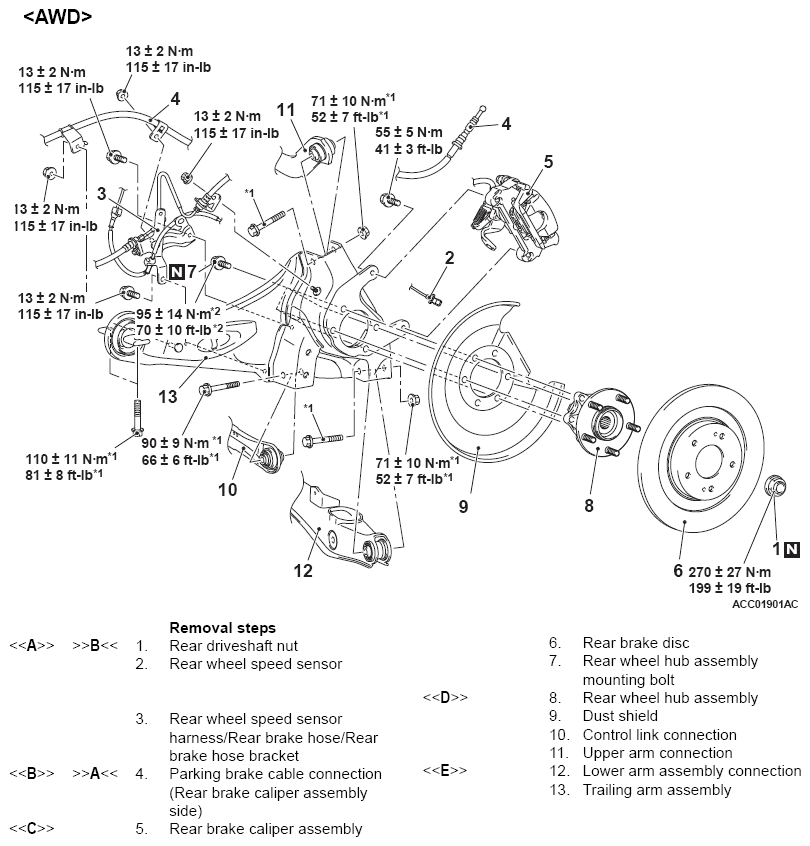

Fig 2: Removing/Installing Trailing Arm With Torque Specification (AWD)
G09665949Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
