Disassembly And Reassembly: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

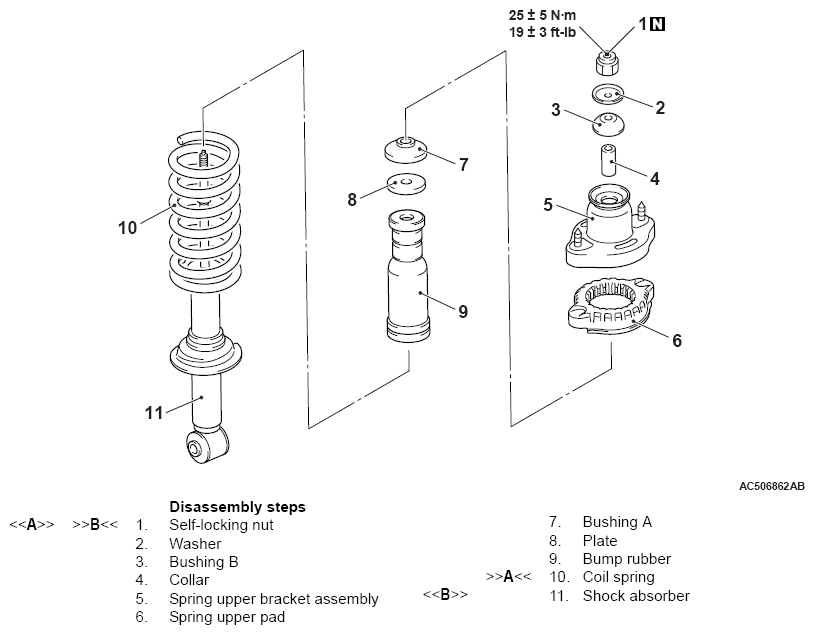

Fig 1: Disassembled View Of Rear Shock Absorber Assembly With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991793 Spring compressor
MB991796 Attachment B
MB991794 Upper plate
MB991830 Fixture
