2.4L Engine

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

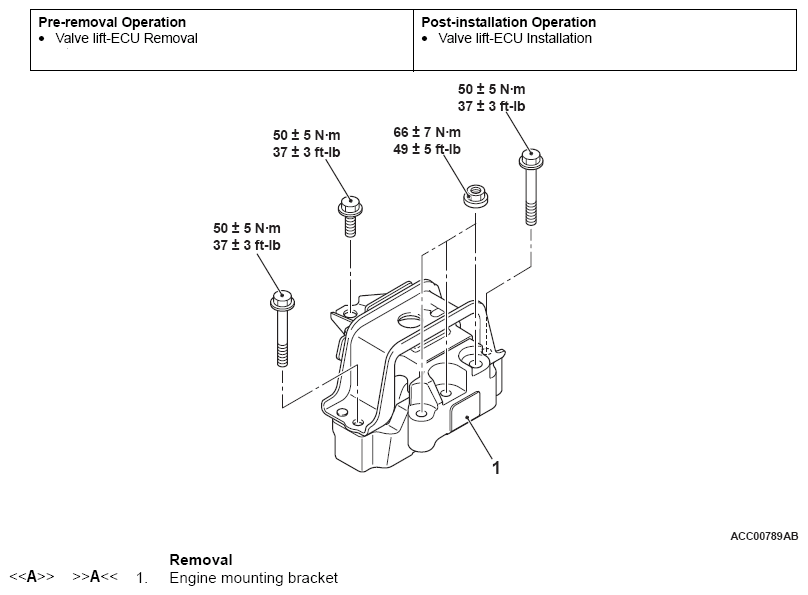

Fig 1: Removing/Installing Engine Mounting With Torque Specification (2.4L Engine)
G09665873Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
