>> D << Strut Nut (Self-Locking Nut) Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Strut Insulator Assembly And Bump Stopper

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Use the following special tools to compress the coil spring gradually.
- Spring compressor (MB991793)
- Attachment A (MB991795)
- Upper plate (MB991794)
- Fixture (MB991830)

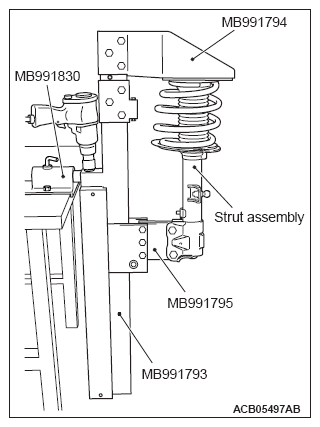

  Fig 2: Compressing Coil Spring Gradually
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: The locking nut for the piston rod inside the strut may be loose. Do not use the impact wrench to loosen the strut nut (self-locking nut).
Use the following special tools to tighten the strut nut (self-locking nut) to the specified torque:
- Wrench (MB991681)
- Socket (MB991682)
  Tightening torque: 60 ± 9 N.m (44 ± 6 ft-lb)

  Fig 3: Tightening Strut Nut (Self-Locking Nut)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
