Disassembly And Reassembly: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

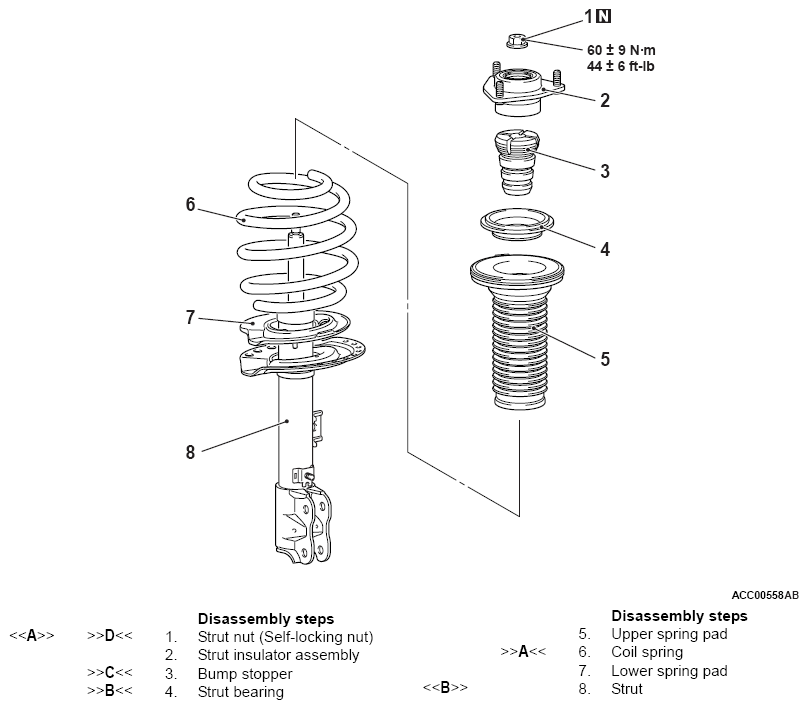

Fig 1: Disassembled View Of Front Suspension With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991681: Wrench
MB991682: Socket
MB991793: Spring compressor
MB991794: Upper plate
MB991795: Attachment A
MB991830: Fixture
