Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The parts indicated by * are the bolts/nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

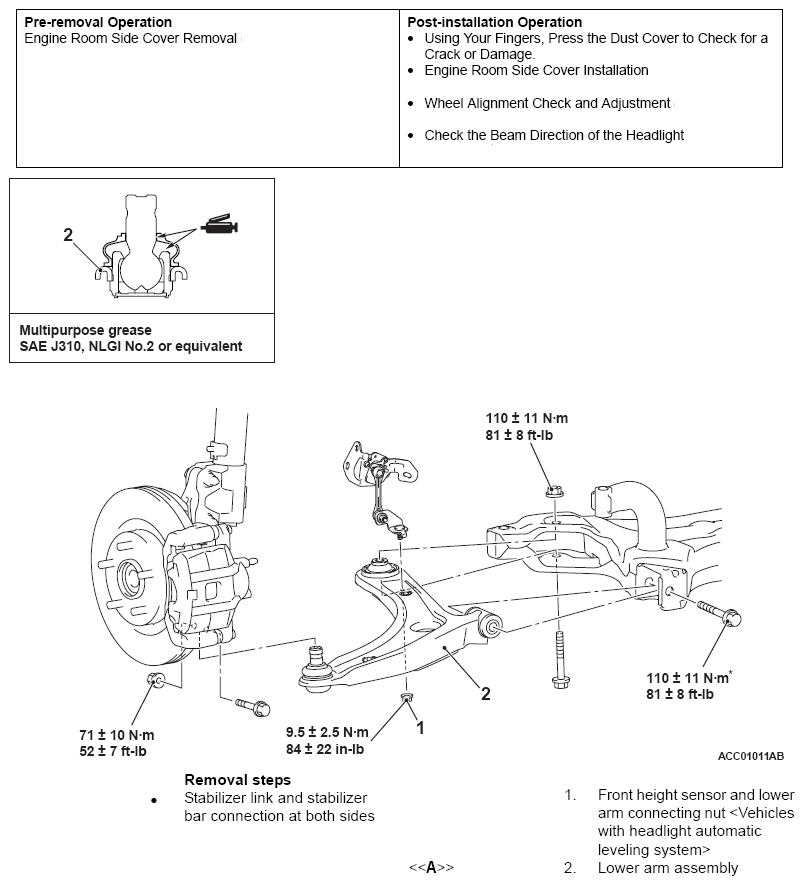

Fig 1: Removing/Installing Lower Arm Assembly With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
