TPMS Warning Light Check
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

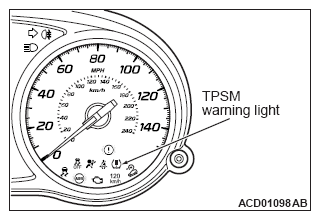

- Check that the TPMS warning light illuminates for approximately three seconds when the ignition switch (engine starting switch) is turned to the "ON" position.
- Check that it illuminates for approximately three seconds and then goes out (If the warning light does not turn off and stays on, perform troubleshooting for TPMS Inspection Procedure No.1. Refer to INSPECTION PROCEDURE 1: THE TPMS WARNING LIGHT STAYS ON. .) (If the warning light does not turn off and flashes, perform troubleshooting for TPMS Inspection Procedure No.2. Refer to INSPECTION PROCEDURE 2: THE TPMS WARNING LIGHT FLASH FOR ABOUT 1 MINUTE AND THEN REMAIN ILLUMINATED. .).
