How To Read Data List

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch (engine starting switch) to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

Connect scan tool MB991958 to the data link connector.
Turn the ignition switch (engine starting switch) to the "ON" position.
Select "Interactive Diagnosis" from the start-up screen.
Select "System select."
Choose "TPMS" from the "CHASSIS" tab.
Select "MITSUBISHI."
Select "Data List."
Choose an appropriate item and select the "OK" button.

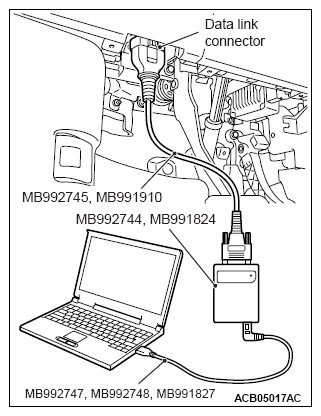

Fig 1: Connecting Special Tool MB991910 To Data Link Connector (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
