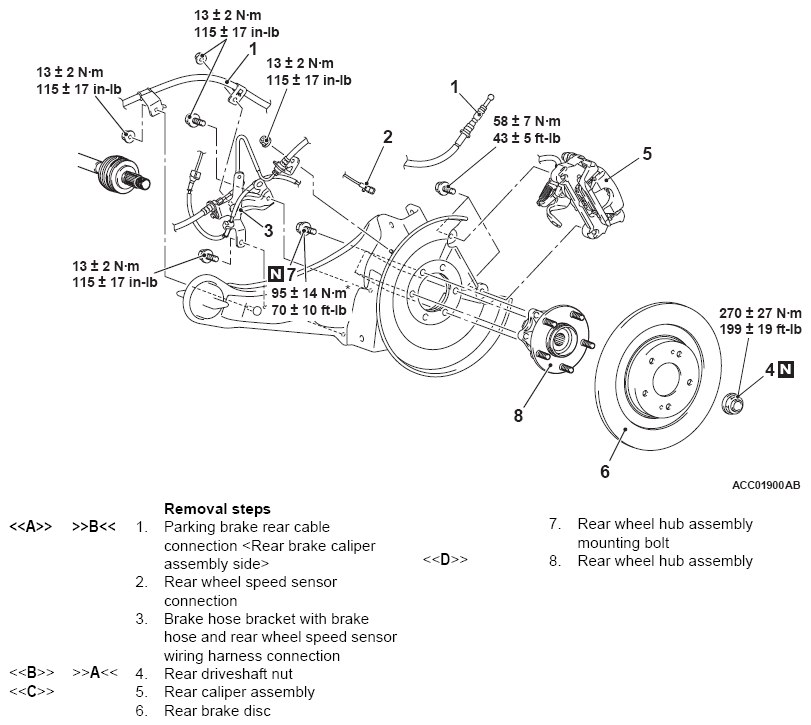

Removal And Installation: Notes
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Do not disassemble the rear wheel hub assembly.
- The wheel speed detection magnetic encoder collects metallic particles easily, because it is magnetized. Make sure that the magnetic encoder should not collect metallic particles. Check that there is not any trouble prior to reassembling it.
- When the rear wheel hub assembly is removed/installed, make sure that the wheel speed detection magnetic encoder (integrated with inner oil seal) does not contact with surrounding parts to avoid damage.
- When removing and installing the rear wheel speed sensor, make sure that its pole piece at the end does not contact with surrounding parts to avoid damage.
- The part indicated with * is the bolt with friction coefficient stabilizer. In removal, replace it with a new one.
Required Special Tools:
- MB992700: Lock nut chisel
- MB990242: Puller shaft
- MB990244: Puller bar
- MB991354: Puller body
- MB990767: Front hub and flange yoke holder
- MB990211: Slide hammer
- MB990241: Rear axle shaft puller
