Gear Oil Level Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the filler plug.

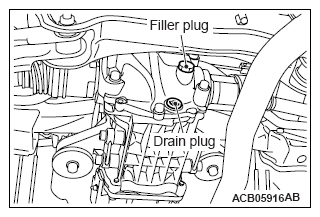

    Fig 1: Identifying Filler And Drain Plug
    G09665733Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Check that the oil level is up to the lower edge of the oil filler plug hole.
  3. Check that the oil is not noticeably dirty.
  4. Tighten the filler plug to the specified torque.

    Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

    Fig 2: Identifying Oil Filler Plug And Hole
    G09665734Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
