<< B >> Driveshaft Assembly Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the driveshaft is seized, use the following special tools to push the driveshaft out from the hub:
    • Puller shaft (MB990242)
    • Puller bar (MB990244)
    • Puller body (MB991354)
    • Front hub and flange yoke holder (MB990767)

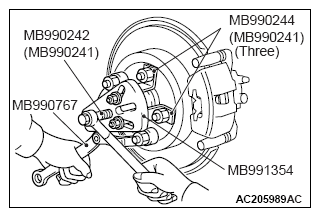

      Fig 1: Pushing Driveshaft Out From Hub
      G09665761Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION:
    • Do not pull out the driveshaft from the EUJ assembly side. Otherwise, the ETJ assembly will be damaged. Be sure to remove the driveshaft from the ETJ assembly side, by using a lever.
    • Care must be taken to ensure that the oil seal of the differential carrier is not damaged by the spline part of the driveshaft.
  2. Use a lever to remove the driveshaft (ETJ assembly side) from the differential carrier.
    Fig 2: Removing Driveshaft (ETJ Assembly Side) From Differential Carrier Using Lever
    G09665762Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: Do not apply the vehicle weight to the wheel bearing with the driveshaft removed. If, however, the vehicle weight shall be applied to the bearing (in order to move the vehicle), use the following special tools for tightening to the specified torque (270 ± 27 N.m [199 ± 19 ft-lb]):
    • Front hub remover and installer (MB990998)
    • Spacer (MB991000)
    Fig 3: Tightening Driveshaft Nut Using Special Tool Front Hub And Flange Yoke Holder (MB990767)
    G09665763Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
