Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When removing and installing the rear wheel speed sensor, make sure that its pole piece at the end does not contact with surrounding parts to avoid damage.

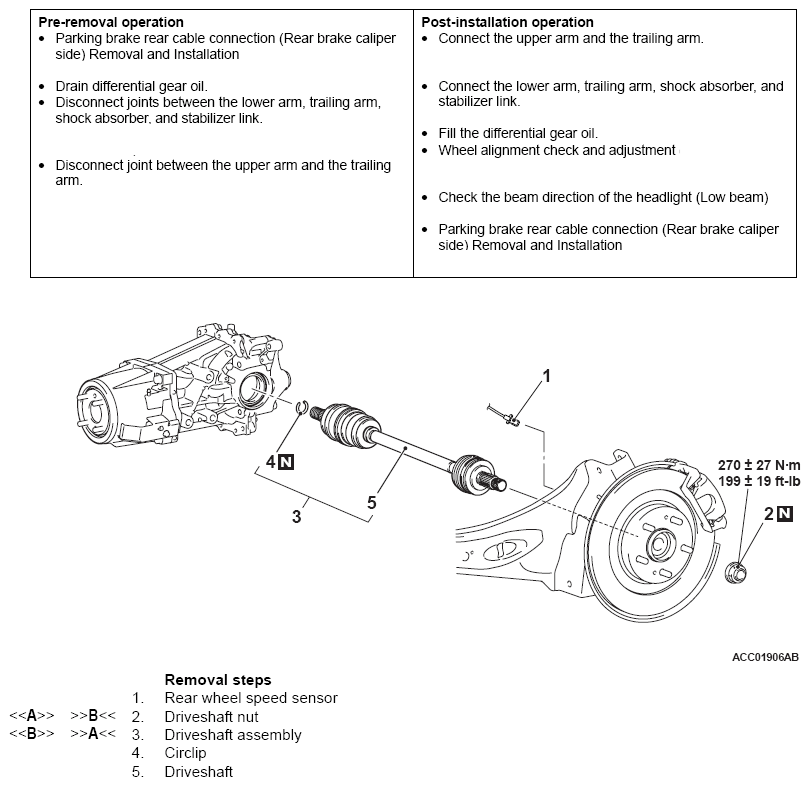

Fig 1: Removing/Installing Driveshaft Assembly With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB992700: Lock nut chisel
MB990242: Puller shaft
MB990244: Puller bar
MB991354: Puller body
MB990767: Front hub and flange yoke holder
