Lubricant/Sealant Application Points

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

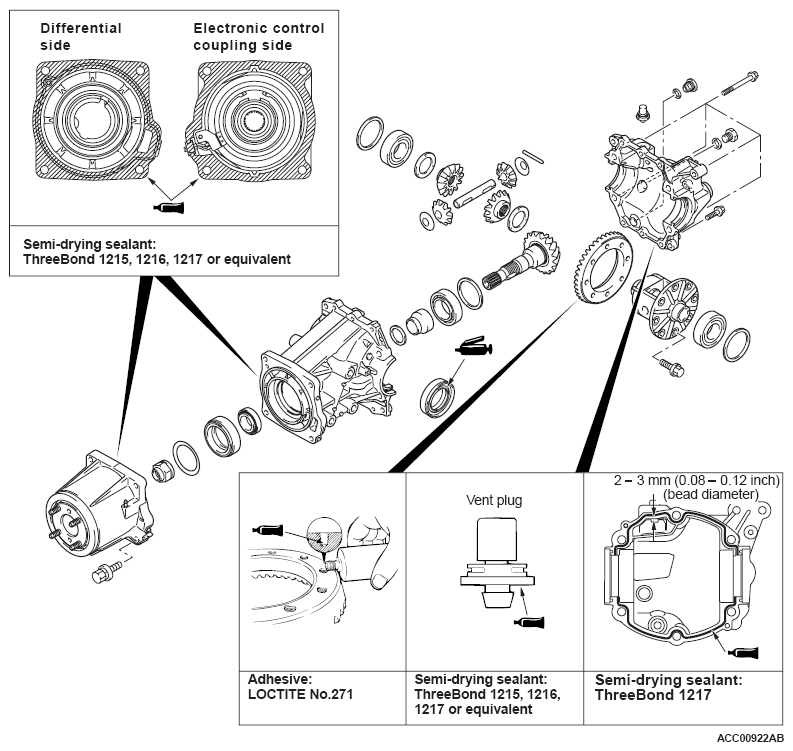

Fig 1: Identifying Lubricant/Sealant Application Points On Differential Carrier Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990810: Side bearing Puller
MB990829: Pinion & side Bearing Installer
MB990930: Installer adapter
MB990934: Installer adapter
MB990938: Installer bar
MB991115: Oil seal installer
MB991180: Bush remover & installer base
MB992111: Side bearing holder
MB992112: Lock nut wrench
MB992113: Drive pinion holder
MB992115: Dummy pinion gauge body
MB992116: Dummy pinion gauge head
MB992117: Cylinder gauge
MB992128: Hex socket head bolt
MD998816: Installer adapter
