Differential Carrier Assembly: Disassembly: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

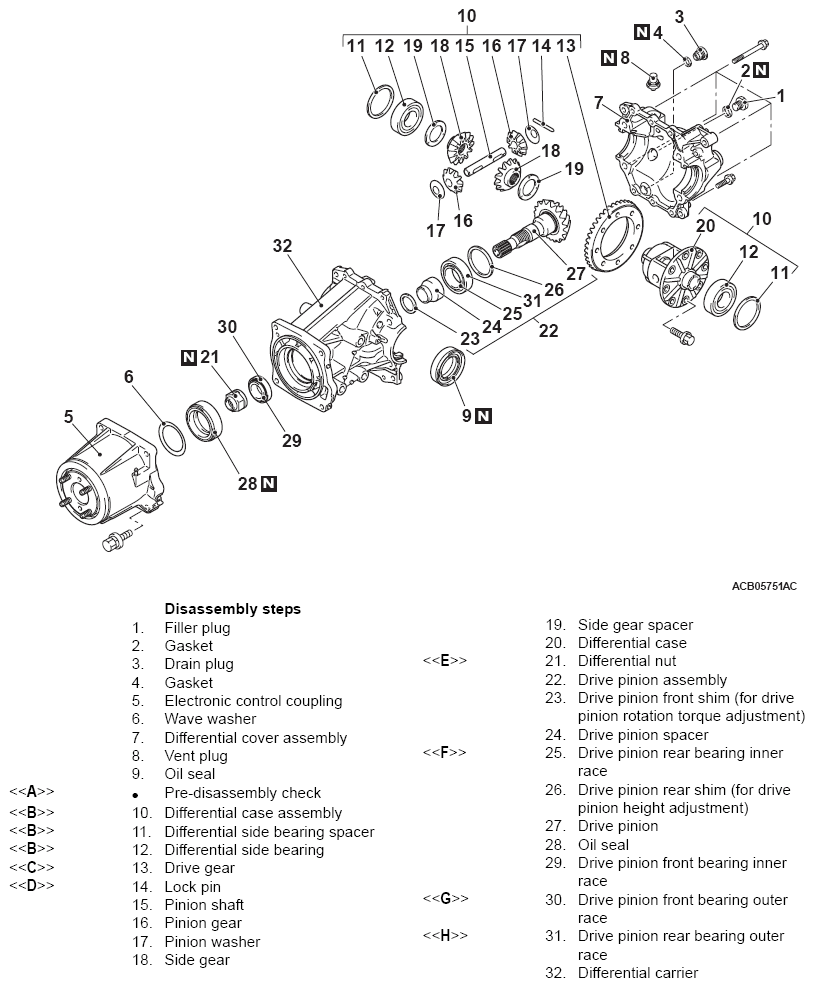

Fig 1: Disassembling View Of Differential Carrier Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990909: Working base
MB991116: Working base adapter
MB992111: Side bearing holder
MB990939: Remover bar
MB990810: Side bearing puller
MB992112: Locking nut wrench
MB992113: Drive pinion holder
