<< A >> Pre-Disassembly Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential case assembly, differential side bearing spacer and differential side bearing.
  2. Fix the following special tools in a vice, and install the differential carrier assembly.
    • Working base (MB990909)
    • Working base adapter (MB991116)
  3. Use special tool side bearing holder (MB992111) to install the differential case assembly, differential side bearing spacer and differential side bearing to the differential carrier, then perform the following checks. Then tighten a flange bolt to the specified torque.

    Tightening torque: 43 ± 7 N.m (32 ± 5 ft-lb)

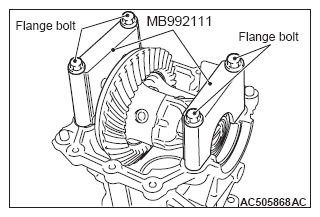

    Fig 1: Installing Differential Case Assembly Using Special Tool Side Bearing Holder (MB992111)
    G09665775Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
