Disassembly And Reassembly < Fwd >: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: As for the EBJ assembly, only the EBJ boot can be replaceable, and other parts cannot be disassembled.

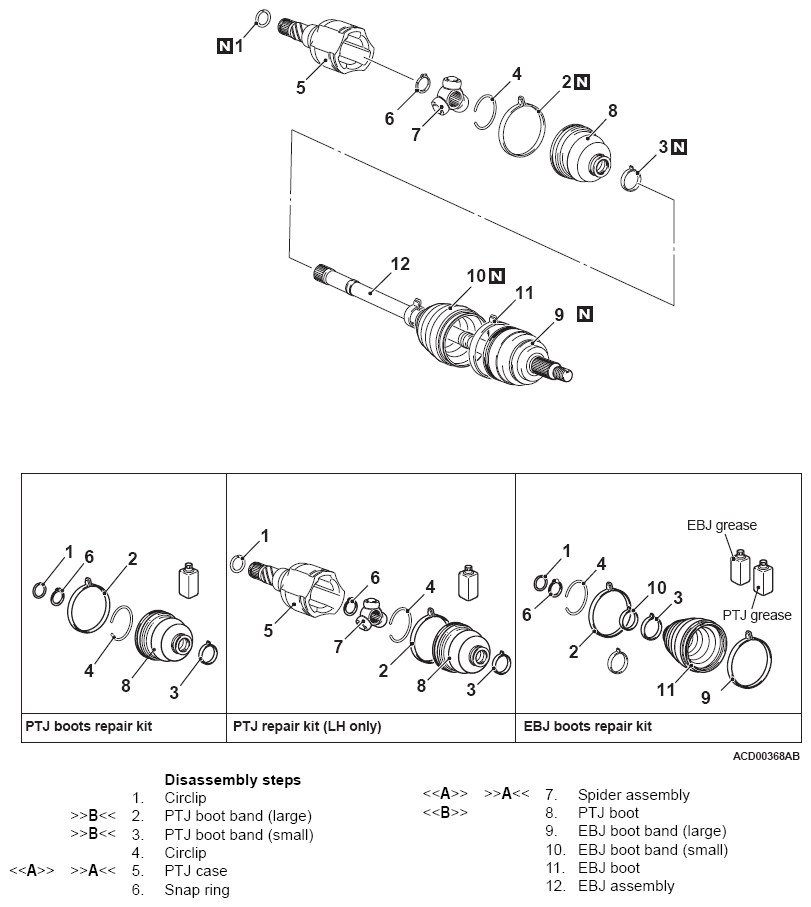

Fig 1: Disassembled View Of EBJ Assembly (FWD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE:

Pillow Tripod Joint
High Efficiency Compact Birfield Joint
The PTJ repair kit is supplied for only the left side. (A repair kit for the right side is not available).
