<< B >> Propeller Shaft Assembly Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If the joint assembly is bent, it may be damaged when pinching the joint boots.

Insert a waste or similar materials into the joint boots, and remove the propeller shaft assembly by aligning the front propeller shaft with the rear shaft.

Fig 1: Identifying Joint Assembly, Joint Boots And Waste
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Using special tool plug (MB991193), cover the transfer case to prevent the entry of foreign materials.

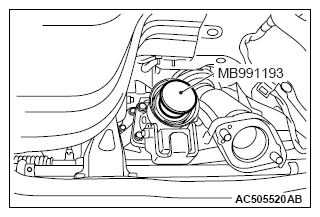

Fig 2: Covering Transfer Case Using Special Tool Plug
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
