>> A << Propeller Shaft Assembly Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not damage the oil seal lip of the transfer.
  • The mounting bolt and nut may be loosened if oil or grease is stuck on the threads of the bolt and nut. Tighten them after degreasing the threads.
  • If the joint assembly is bent, it may be damaged when pinching the joint boots.

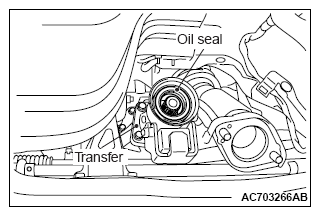

Fig 1: Identifying Transfer And Oil Seal
G09665605Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
