Special Tool
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
| Tool |
Tool number and name |
Supersession |
Application |
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|

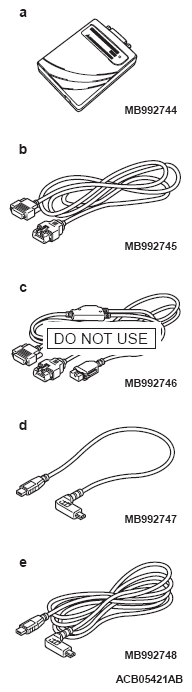

- MB992744
- MB992745
- MB992746
- MB992747
- MB992748
- Vehicle communication interface-Lite (V.C.I.-Lite)
- V.C.I.-Lite main harness A (for vehicles with CAN communication)
- V.C.I.-Lite main harness B (for vehicles without CAN communication)
- V.C.I.-Lite USB cable short
- V.C.I.-Lite USB cable long
|
- |
Actuator test check. |
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|

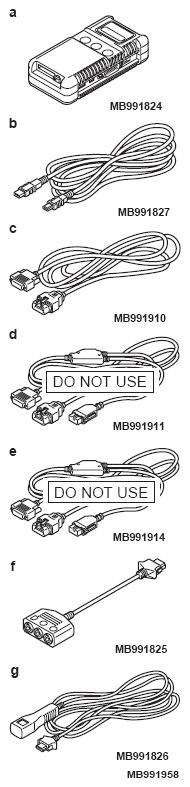

MB991958
- MB991824
- MB991827
- MB991910
- MB991911
- MB991914
- MB991825
- MB991826
M.U.T.-III sub assembly
- Vehicle communication interface (V.C.I.)
- M.U.T.-III USB cable
- M.U.T.-III main harness A (Vehicles with CAN communication system)
- M.U.T.-III main harness B (Vehicles without CAN communication system)
- M.U.T.-III main harness C (for Daimler Chrysler models only)
- M.U.T.-III measurement adapter
- M.U.T.-III trigger harness
|
MB991824-KIT |
CAUTION:
M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle. Actuator test check |
