Disassembly And Reassembly

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

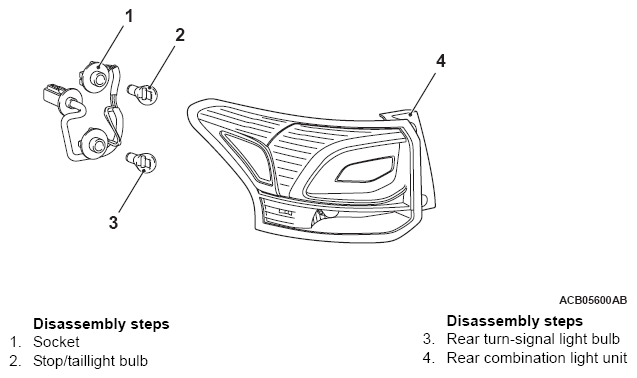

Fig 1: Identifying Rear Turn-Signal Light Bulb And Rear Combination Light Unit
G09667004Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
