INSPECTION - 3.0L Engine: Brush

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Measure the length of the protrusion of the brush. Replace the brush if the protrusion length is shorter than the limit.
Limit: 2 mm (0.08 inch) minimum
Unsolder the lead of the brush. The brush will come out, becoming ready for removal.

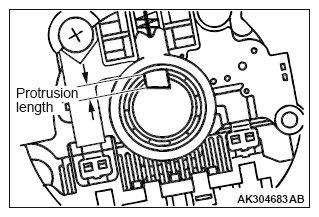

Fig 1: Identifying Brush Protrusion Length
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install a new brush by pushing it into the holder as shown in the illustration and soldering the lead.

Fig 2: Identifying Brush Soldering Area
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
