Special Tools

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Tool number and name	Supersession	Application

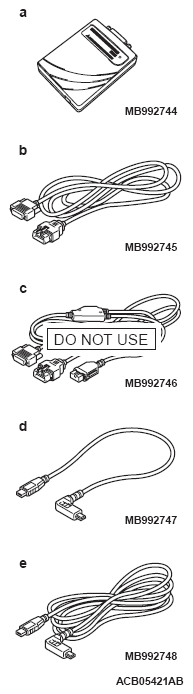

MB992744 MB992745 MB992746 MB992747 MB992748 Vehicle communication interface-Lite (V.C.I.-Lite) V.C.I.-Lite main harness A (for vehicles with CAN communication) V.C.I.-Lite main harness B (for vehicles without CAN communication) V.C.I.-Lite USB cable short V.C.I.-Lite USB cable long	-	Check of the electronic control AWD (the diagnostic trouble code display, service data display, freeze frame data display, actuator test with scan tool)

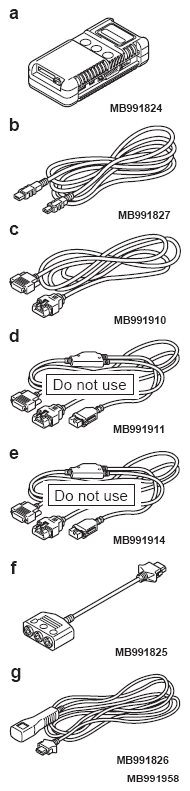

MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 M.U.T.-III Sub Assembly Vehicle communication interface (V.C.I.) M.U.T.-III USB Cable M.U.T.-III Main Harness A (Vehicles with CAN communication system) M.U.T.-III Main Harness B (Vehicles without CAN communication system) M.U.T.-III main harness C (for Chrysler models only) M.U.T.-III Adapter Harness M.U.T.-III Trigger Harness	MB991824-KIT NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly. Check of the electronic control AWD (the diagnostic trouble code display, service data display, freeze frame data display, actuator test with scan tool)
MB991223 Harness set MB991219 Test harness MB991220 LED harness MB991221 LED harness adapter MB991222 Probe	MB991223	Continuity check and voltage measurement at the AWD-ECU wiring harness connector
MB992006 Extra fine probe	General service tool
