Special Tools

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
Tool Tool number and name Supersession Application
G09667468
 MB990810 Side bearing puller MB991367-01 A/C compressor rotor removal and installation
G09667469
 MB992623 Guide MIT217213
G09667470
 MB992624 Pusher MB990900-01
G09667471
 MD999566 Claw MB991367-01
G09667472
 MB991367 Special spanner MB991367-01 Armature mounting nut of compressor removal and installation
G09667473
 MB991386 Pin MIT217213 Armature mounting nut of compressor removal and installation
G09667474
 MB991658 Test harness set Tool not available Inspection of throttle position sensor
G09667475
 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222
 Harness set
  1. Check harness
  2. LED harness
  3. LED harness adapter
  4. Probe
 Continuity check and voltage measurement at harness wire or connector
  1. For checking connector pin contact pressure
  2. For checking power supply circuit
  3. For checking power supply circuit
  4. For connecting a locally sourced tester
G09667476
 MB992006 Extra fine probe General service tool Making voltage and resistance measurement during troubleshooting

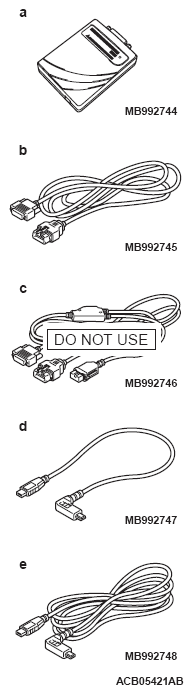

G09667477
  1. MB992744
  2. MB992745
  3. MB992746
  4. MB992747
  5. MB992748

  1. Vehicle communication interface-Lite (V.C.I.-Lite)
  2. V.C.I.-Lite main harness A (for vehicles with CAN communication)
  3. V.C.I.-Lite main harness B (for vehicles without CAN communication)
  4. V.C.I.-Lite USB cable short
  5. V.C.I.-Lite USB cable long
 - DTC, service data and actuator test check.

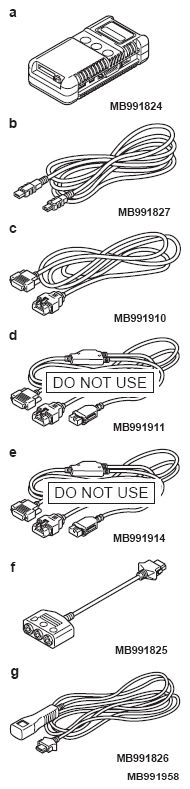

G09667478
 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826

M.U.T.-III sub-assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Chrysler only)
  6. M.U.T.-III measurement adapter
  7. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle.
DTC, data list and actuator test check.
