A/C Compressor Relay Continuity Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
Battery voltage Checking terminal Normal condition
Not applied 3 - 4 No continuity
  • Connect terminal 2 to the positive battery terminal
  • Connect terminal 1 to the negative battery terminal
 Continuity exists (2 Ω or less)

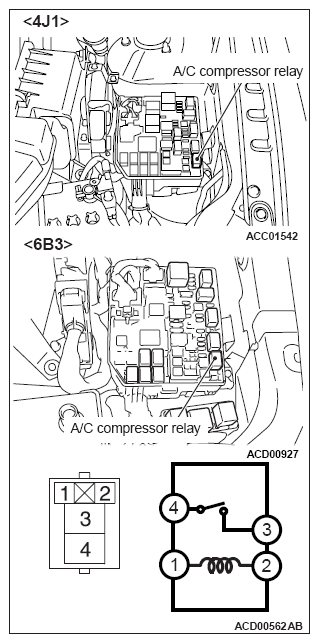

Fig 1: Inspecting A/C Compressor Relay Continuity
G09667490Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
