Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

For removal and installation of the passenger's side air bag module, always observe the service procedures described in DRIVER'S AIR BAG MODULE AND CLOCK SPRING to PASSENGER'S (FRONT) AIR BAG MODULE .
When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle (Refer to OCCUPANT CLASSIFICATION SENSOR REMOVAL AND INSTALLATION ).

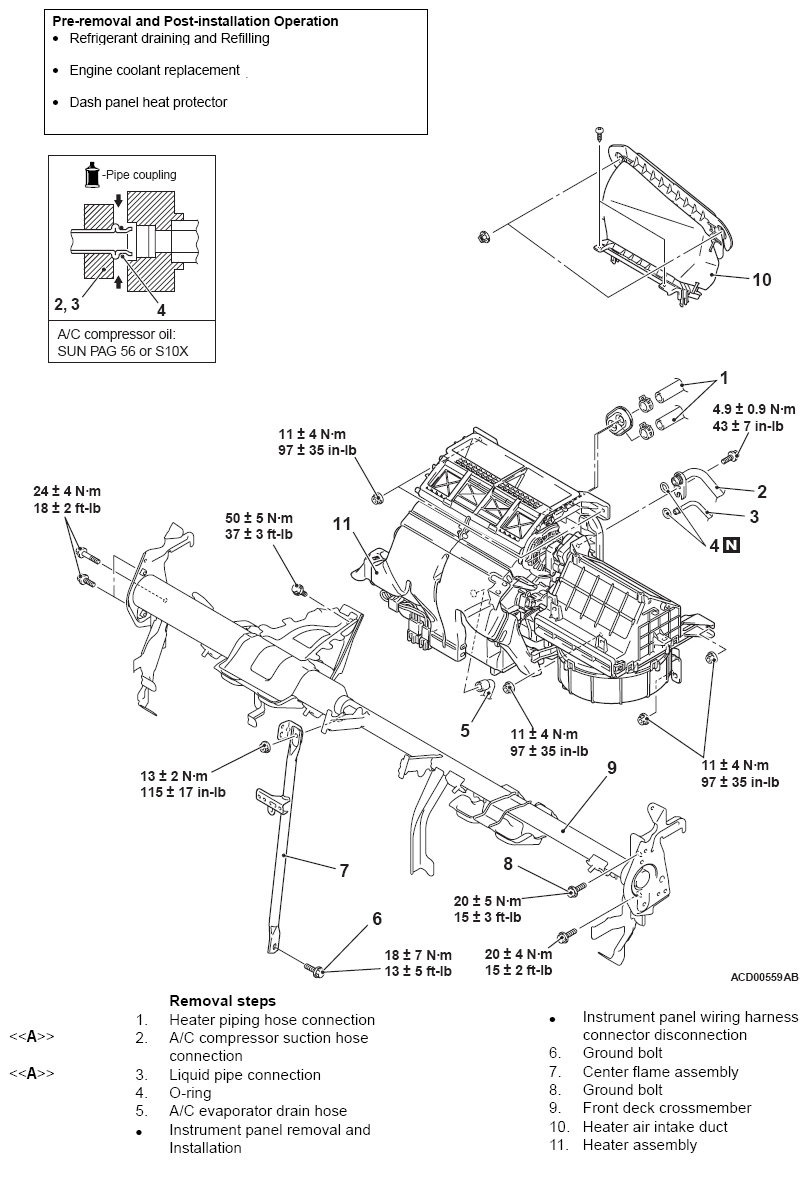

Fig 1: Exploded View Of Heater Unit And Blower Assembly With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
