< 6B3 >

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

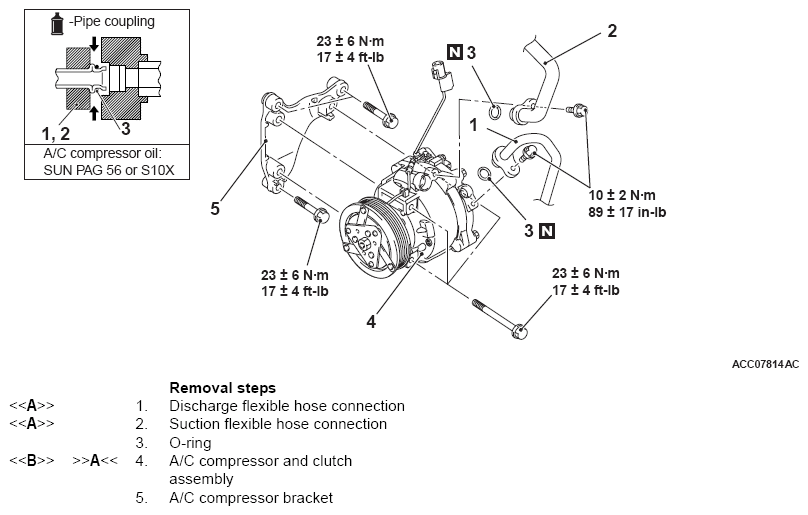

Fig 1: Exploded View Of Compressor Assembly With Torque Specifications (6B3)
G09667510Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
