<< B >> Rotor Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Be sure to use the guide (MB992623) when the side bearing puller (MB990810) is used to prevent the damage of A/C compressor.
  • If the threaded shaft of side bearing puller (MB990810) is turned than necessary, the rotor may be distorted. Therefore, turn the threaded shaft lightly only by hand without using any tools.

Rotor can be removed by hand, but if it is difficult to remove it, use the guide (MB992623) and the side bearing puller (MB990810) as shown.

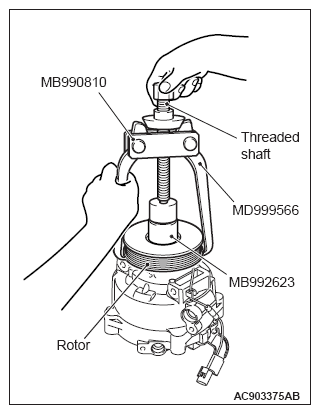

Fig 1: Identifying Side Bearing Puller, Threaded Shaft, Rotor And Guides
G09667516Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
