<< A >> Steering Lock Cylinder Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Insert the key into the steering lock cylinder, and turn the ignition key to the "ACC" position.
Using a flat-tipped precision screwdriver or similar tool, press the lock button located at the part "A" shown in the figure.

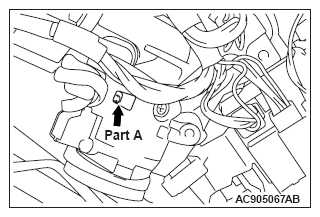

Fig 1: Locating Steering Lock Cylinder Lock Button (Part A)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Subsequently, using a flat-tipped precision screwdriver or similar tool, press the step generated at the part "B" toward the direction of front passenger's seat. Then, pull out the ignition key, and then remove the steering lock cylinder.

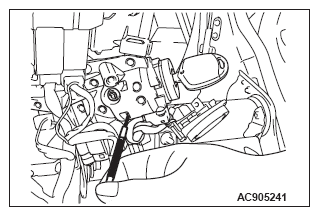

Fig 2: Pressing Lock Button Using Flat-Tipped Precision Screwdriver/Similar Tool
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

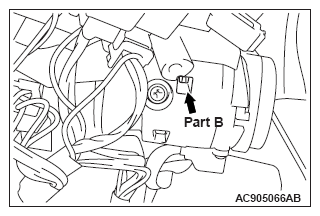

Fig 3: Locating Steering Lock Cylinder Lock Button (Part B)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

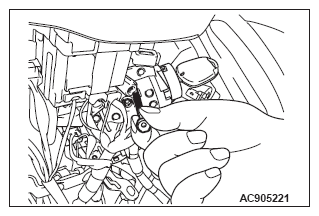

Fig 4: Removing Steering Lock Cylinder
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
