Disassembly And Reassembly < Vehicles Without Steering Lock >: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

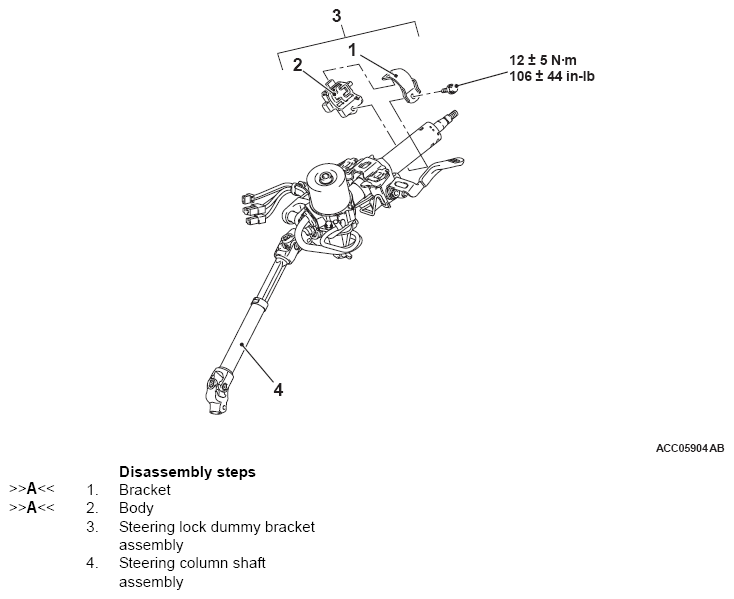

Fig 1: Disassembled View Of Electric Power Steering - EPS (Vehicles Without Steering Lock)
G09666074
NOTE:
  • The steering lock dummy bracket assembly (including a bracket, a housing and a flange bolt) is installed to secure the paddle shift assembly.
  • The steering lock dummy bracket is supplied not only as an assembly but also individually (the bracket, the housing and the flange bolt).
  • When it is supplied as an assembly, the housing and the bracket have been assembled by the flange bolt.
