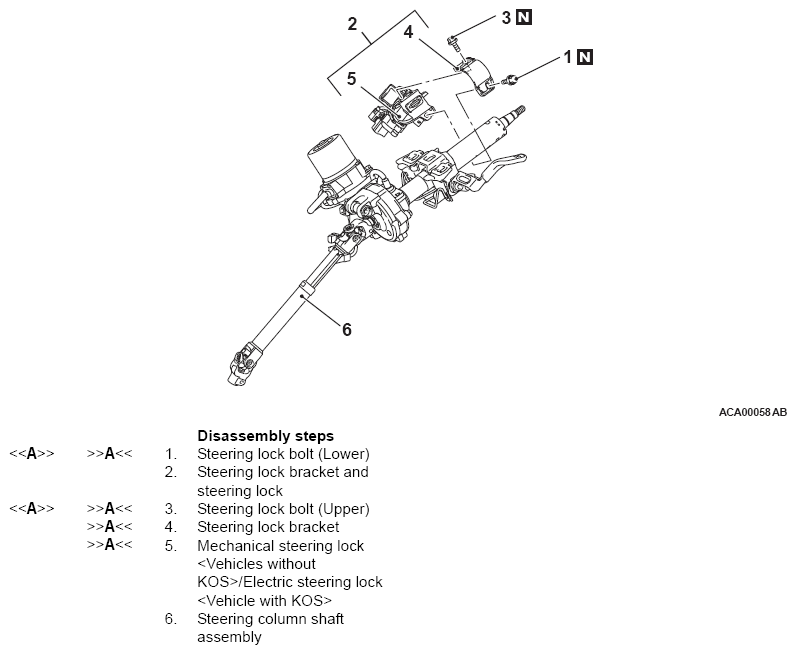

Disassembly And Reassembly < Vehicles With Steering Lock >: Notes
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
When replacing the electric steering lock, complete the chassis number registration. (Refer to
REGISTRATION WHEN REPLACING OSS-ECU AND ELECTRIC STEERING LOCK
.)
NOTE:
- A steering lock, a steering lock bracket and a steering lock bolt are supplied as a single unit. A mechanical steering lock assembly (a mechanical steering lock, a steering lock bracket, a steering lock bolt, a key reminder switch/key ring antenna assembly and an ignition switch are included.) < vehicles without KOS > or an electric steering lock assembly (a electric steering lock, a steering lock bracket and a steering lock bolt are included.) < vehicles with KOS > is also supplied.
- When the steering lock assembly is supplied, the steering lock bracket is assembled to the steering lock and the steering lock bolt head (upper) is broken off.
- For removal and installation of key reminder switch/key ring antenna and ignition switch, Refer to REMOVAL AND INSTALLATION .
Required Special Tools:
- MB992684: Screw extractor (Recommended tool or equivalent.
