Special Tools

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
Tool Tool number and name Supersession Application

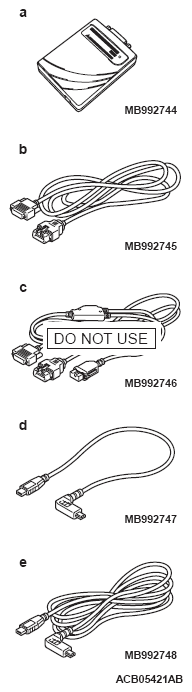

G09666041
  1. MB992744
  2. MB992745
  3. MB992746
  4. MB992747
  5. MB992748

  1. Vehicle communication interface-Lite (V.C.I.-Lite)
  2. V.C.I.-Lite main harness A (for vehicles with CAN communication)
  3. V.C.I.-Lite main harness B (for vehicles without CAN communication)
  4. V.C.I.-Lite USB cable short
  5. V.C.I.-Lite USB cable long
 - EPS-ECU check (Diagnostic trouble code, data list)

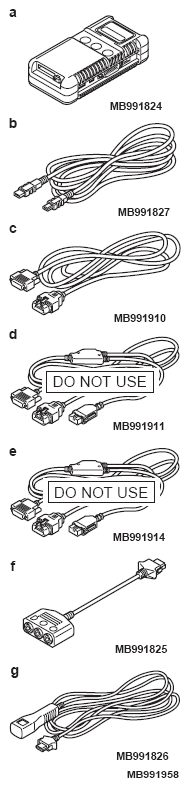

G09666042
 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826

M.U.T.-III sub-assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Chrysler models only)
  6. M.U.T.-III measurement adapter
  7. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle.
EPS-ECU check (Diagnostic trouble code, data list)
G09666043
 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222

Harness set
  1. Test harness
  2. LED harness
  3. LED harness adaptor
  4. Probe
 General service tools Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
  1. Connector pin contact pressure inspection
  2. Power circuit inspection
  3. Power circuit inspection
  4. Commercial tester connection
G09666044
 MB992006
Extra fine probe		 - Making voltage and resistance measurement during troubleshooting
G09666045
 MB991897 or MB992011
Ball joint remover		 MB991113-01, MB990635-01 or General service tool Knuckle and tie rod end ball joint disconnection
NOTE: Steering linkage puller (MB990635 or MB991113) is also available to disconnect knuckle and tie rod end ball joint.
G09666046
 MB990326
Preload socket		 General service tool
  • Tie rod end ball joint rotation torque measurement
  • Steering column shaft total rotation torque measurement
G09666047
 MB991006
Preload socket		 MB990228-01 Pinion total rotation torque measurement
G09666048
 MB990803
Steering wheel puller		 General service tool Steering wheel removal
G09666049
 MB992209
Bellows band crimping tool		 MB992209 Tie-rod bellows band installation
G09666050
 MB992208
Bellows band crimping tool		 MB992208
