Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not reuse the product that has been dropped because its internal components may be defective even if it has no apparent damage.
  • Always keep EPS-ECU away from the matter that generates magnetic force.

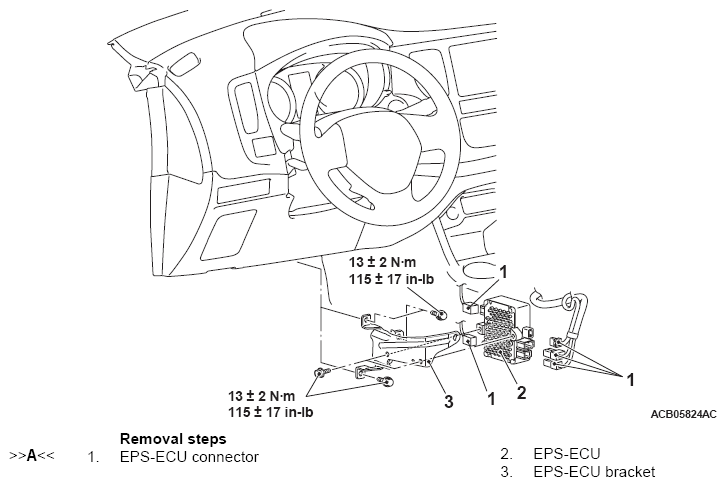

Fig 1: Removing/Installing Electric Power Steering Control Unit With Torque Specification (EPS-ECU)
G09666085
