Removal And Installation: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Never attempt to disassemble or repair the side impact sensor. If faulty, replace it.
  • Do not drop or subject the side impact sensor to impact or vibration. Replace the side impact sensor, if dents, cracking, deformation, or rust are present.
  • Replace the side impact sensor after the side and curtain air bag has deployed.

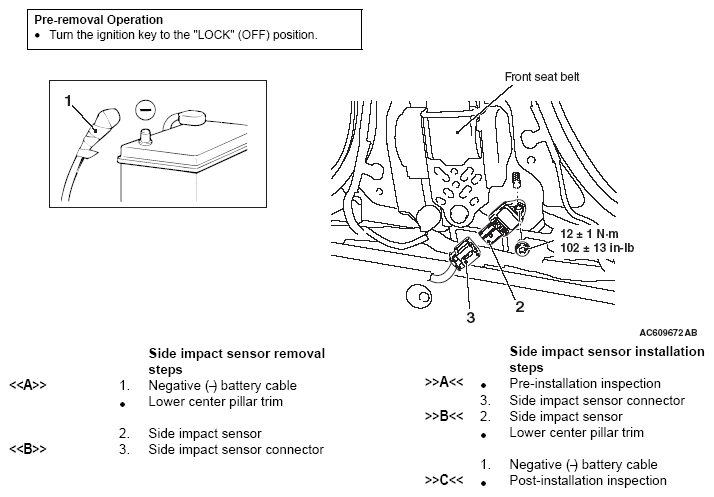

Fig 1: Side Impact Sensor Replacement Components With Torque Specifications
G05396600Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: The illustration above shows the side impact sensor (LH). The position of the side impact sensor (RH) is symmetrical to this.
