Inspection Procedure 2: Power Supply Circuit System: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

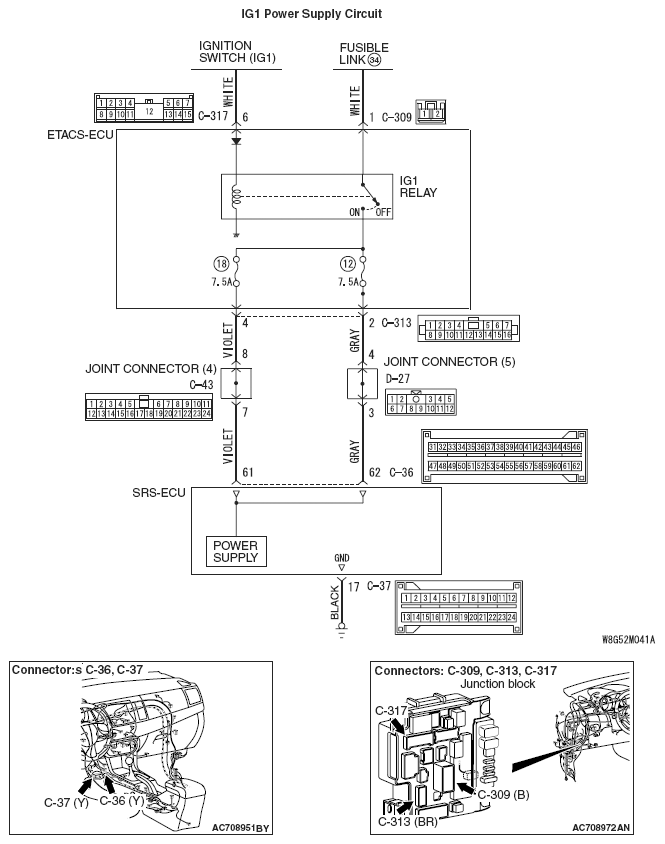

Fig 1: IG1 Power Supply Circuit Diagram
G05396532Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
