DTC B1B00: Driver's Air Bag Module (1ST Squib) System (Shorted To Squib Circuit Ground); DTC B1B04: Driver's Air Bag Module (2ND Squib) System (Shorted To Squib Circuit Ground): Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

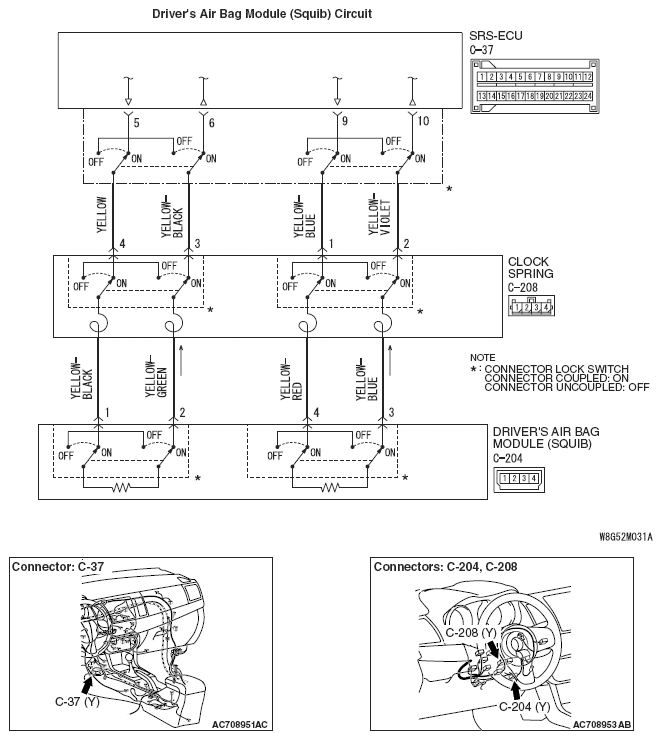

Fig 1: Driver's Air Bag Module (Squib) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1B00 < 1st squib > or B1B04 < 2nd squib > is set in the SRS-ECU, always diagnose the CAN main bus line.
