DTC B1B8D: Seat Slide Sensor Open Circuit: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

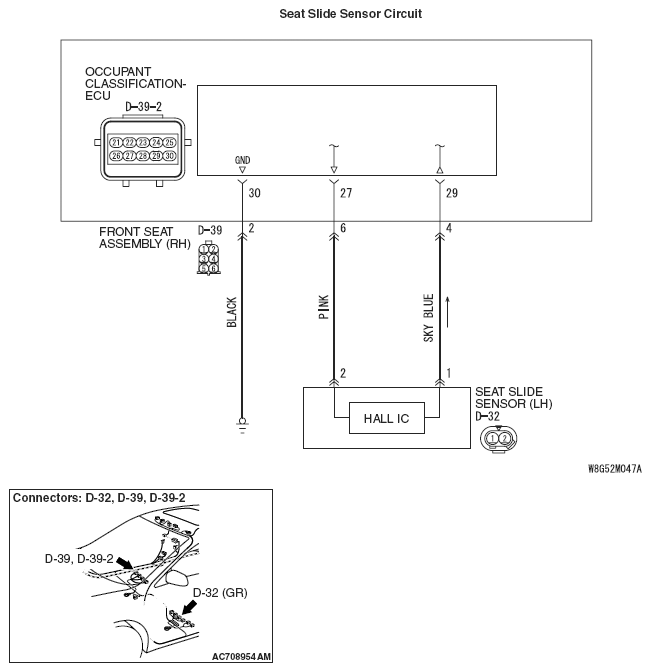

Fig 1: Seat Slide Sensor Circuit Diagram
G05396500Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: If DTC B1B8D is set in the occupant classification-ECU, always diagnose the CAN main bus lines.
