Air Bag Modules

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the pad cover for dents, cracks or deformation.
  2. Check the connector for damage, terminal deformities, and the harness for binding.
  3. Check the air bag inflator case for dents, cracks or deformities.
  4. Install the air bag module (driver's side) to the steering wheel to check installation or alignment with the steering wheel.
  5. Install the air bag module (front passenger's side) to the instrument panel and front deck crossmember to check installation or alignment.

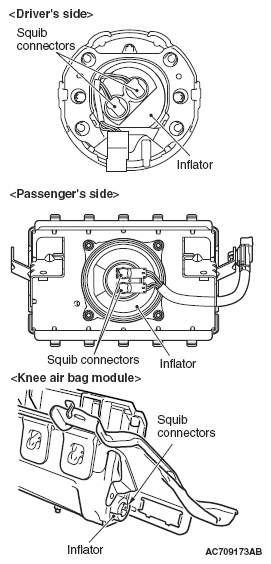

    Fig 1: Identifying Air Bag Modules
    G05396553Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
