Circuit Diagram

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Do not repair, splice, or modify the SRS wiring (except for specific repairs to the instrument panel wiring harness and the floor wiring harness shown on SERVICE PRECAUTIONS  ): replace the wiring if necessary, after reading and following all precautions and procedures in this manual.
  • Do not use an analog ohmmeter to check the SRS wiring or components; use only the special tools (refer to SPECIAL TOOLS  ) and a digital multi-meter (refer to SRS AIR BAG DIAGNOSIS  ).
CAUTION: Improper services cause the system to be inoperative. Do not disassemble or tamper with the SRS components to prevent the serious injury.

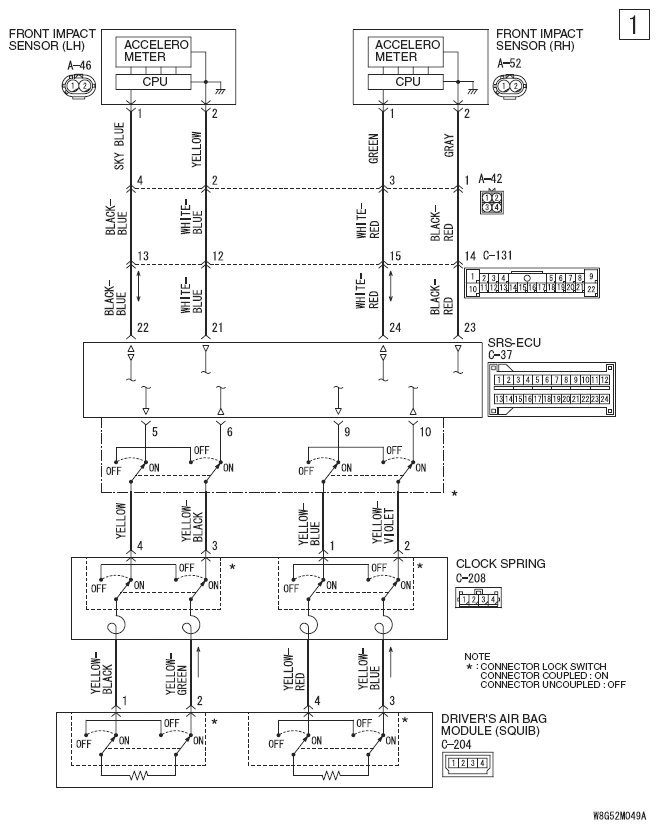

Fig 1: SRS - Circuit Diagram (1 Of 9)
G05396093Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

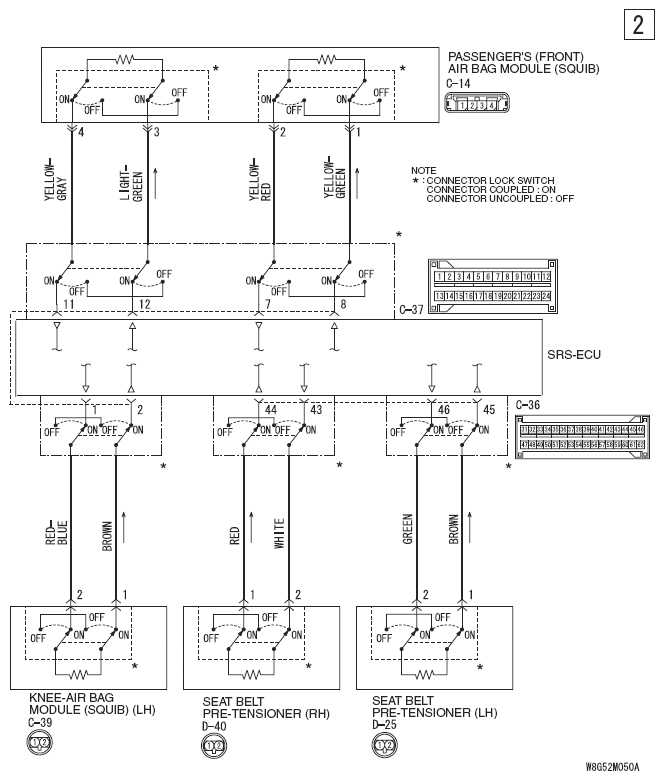

Fig 2: SRS - Circuit Diagram (2 Of 9)
G05396094Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

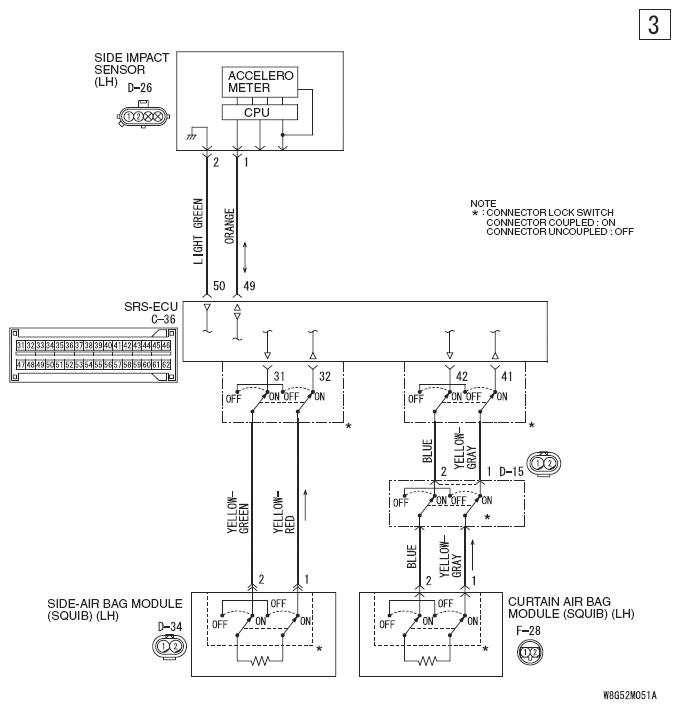

Fig 3: SRS - Circuit Diagram (3 Of 9)
G05396095Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

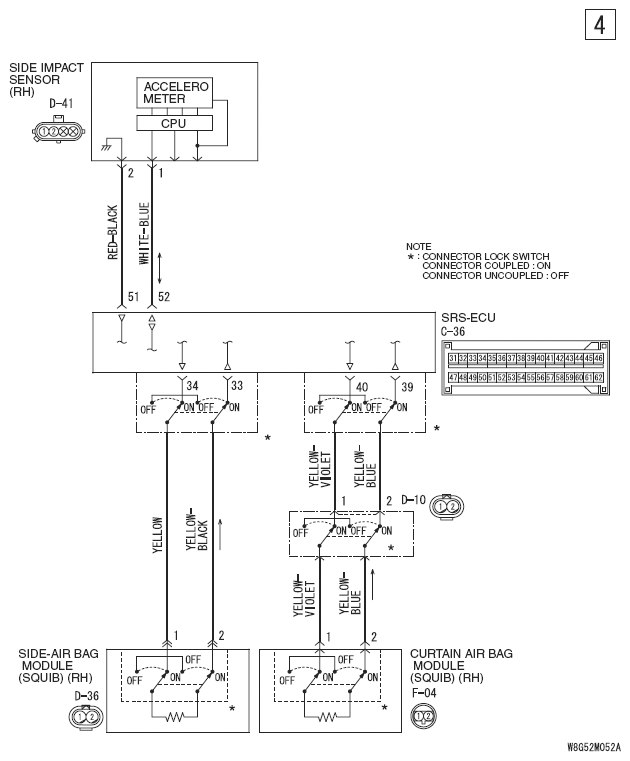

Fig 4: SRS - Circuit Diagram (4 Of 9)
G05396096Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

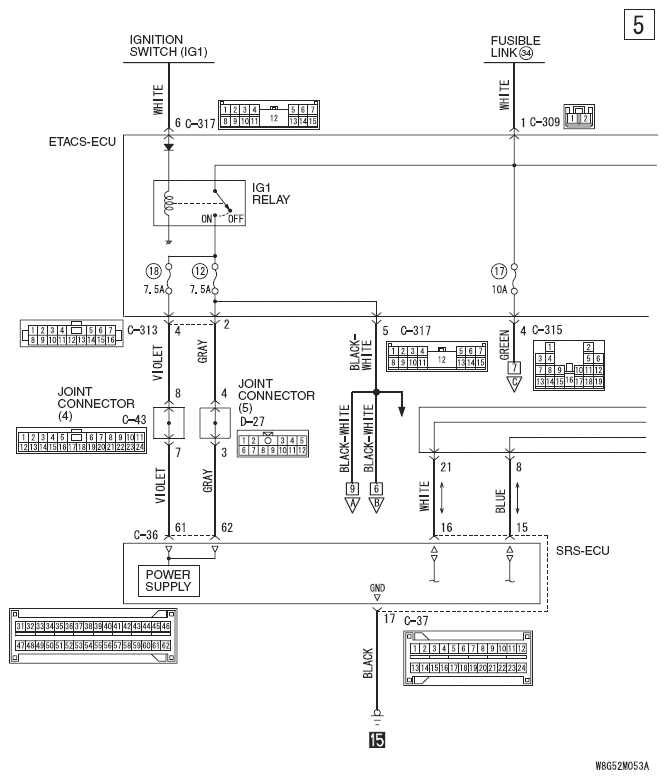

Fig 5: SRS - Circuit Diagram (5 Of 9)
G05396097Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

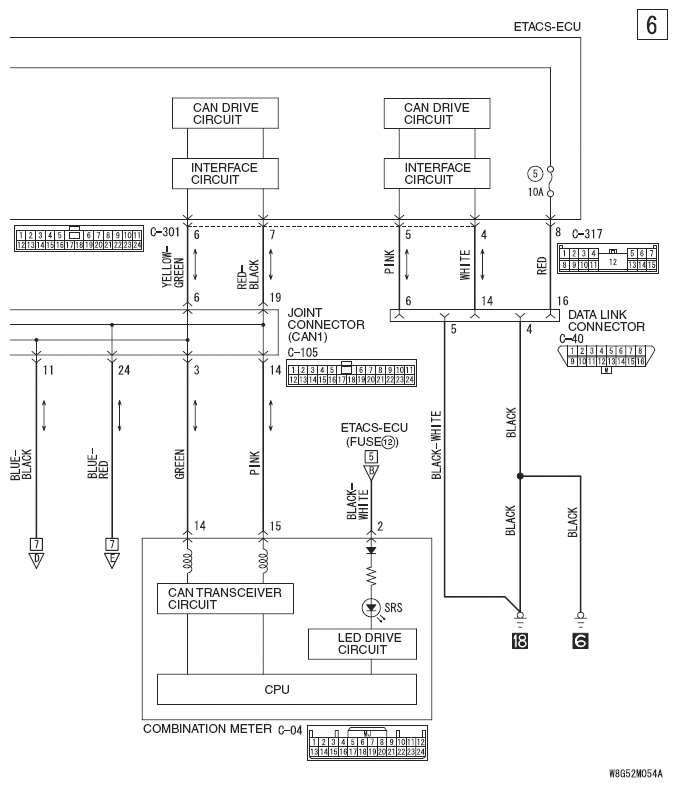

Fig 6: SRS - Circuit Diagram (6 Of 9)
G05396098Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

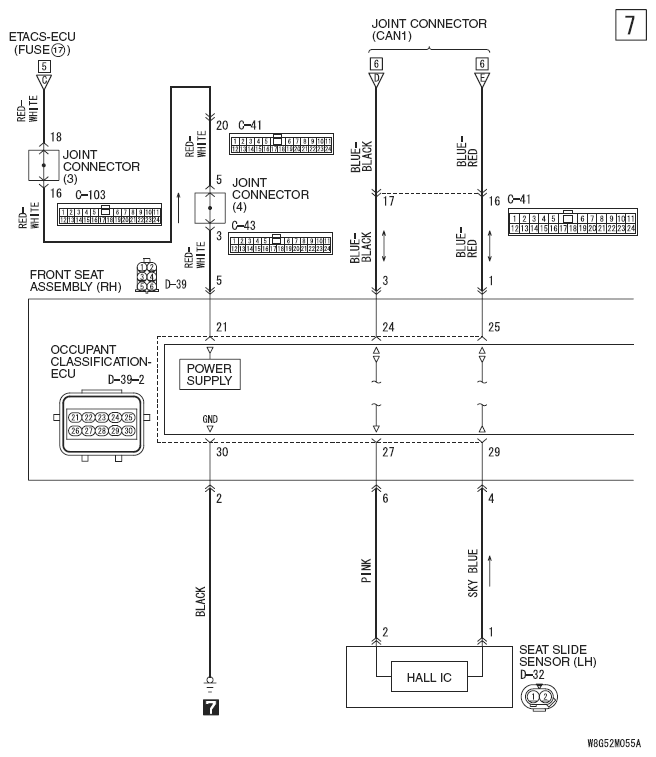

Fig 7: SRS - Circuit Diagram (7 Of 9)
G05396099Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

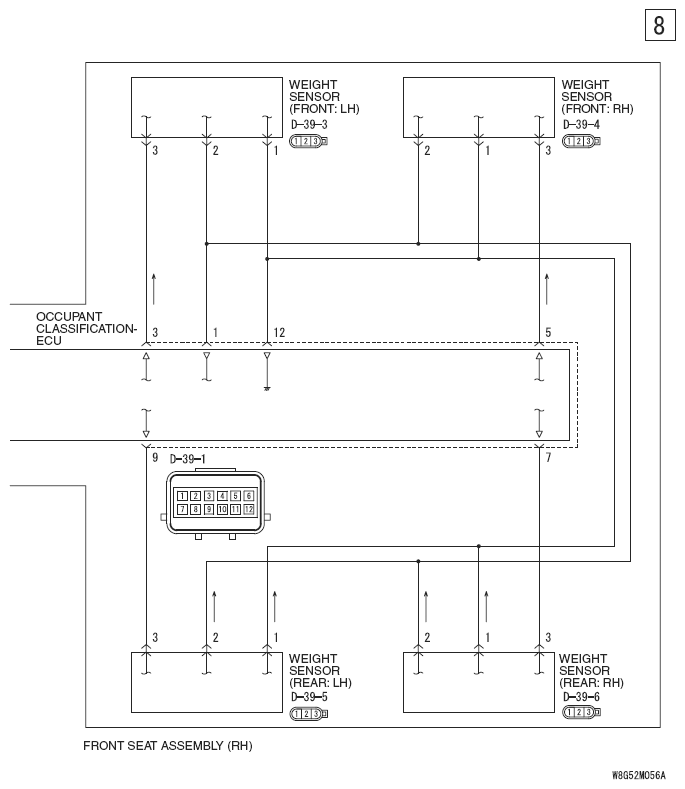

Fig 8: SRS - Circuit Diagram (8 Of 9)
G05396100Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

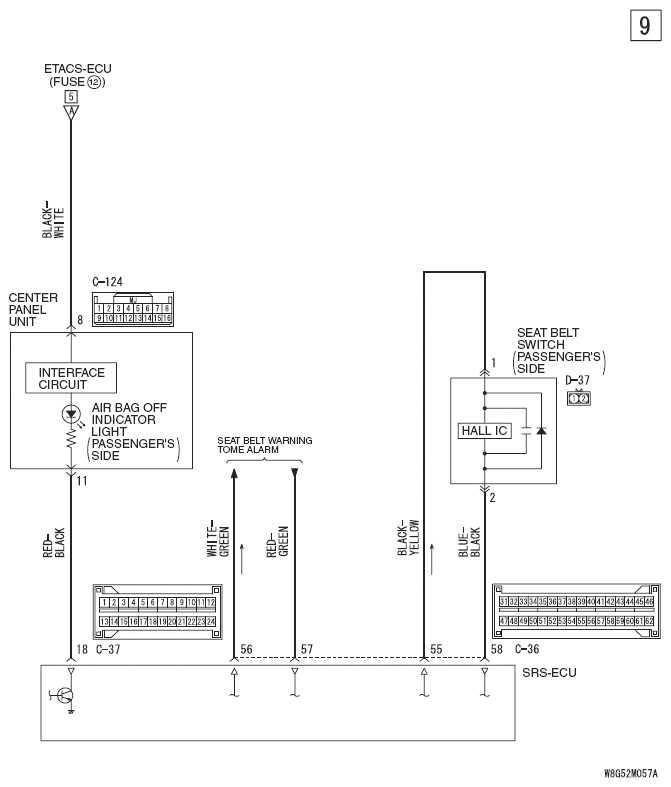

Fig 9: SRS - Circuit Diagram (9 Of 9)
G05396101Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
