Continuity Check At Wiring Harness-Side Connector

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Operate the lock lever to disconnect the ASC-ECU harness connector as shown in the figure.

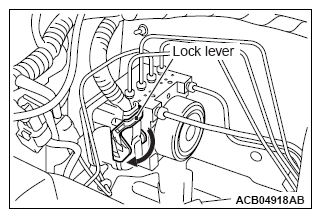

    Fig 1: Disconnecting ASC-ECU Harness Connector
    G09665998
  2. Check the resistance and continuity between the terminals indicated in the table below.
  3. The terminal layout is shown in the illustration.
    Fig 2: Identifying ASC-ECU Harness Connector Terminal
    G09665999
Terminal No. Signal Normal condition
13 - body ground Ground Continuity exists (2 Ω or less)
38 - body ground Ground Continuity exists (2 Ω or less)
