Removal And Installation - AWD: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

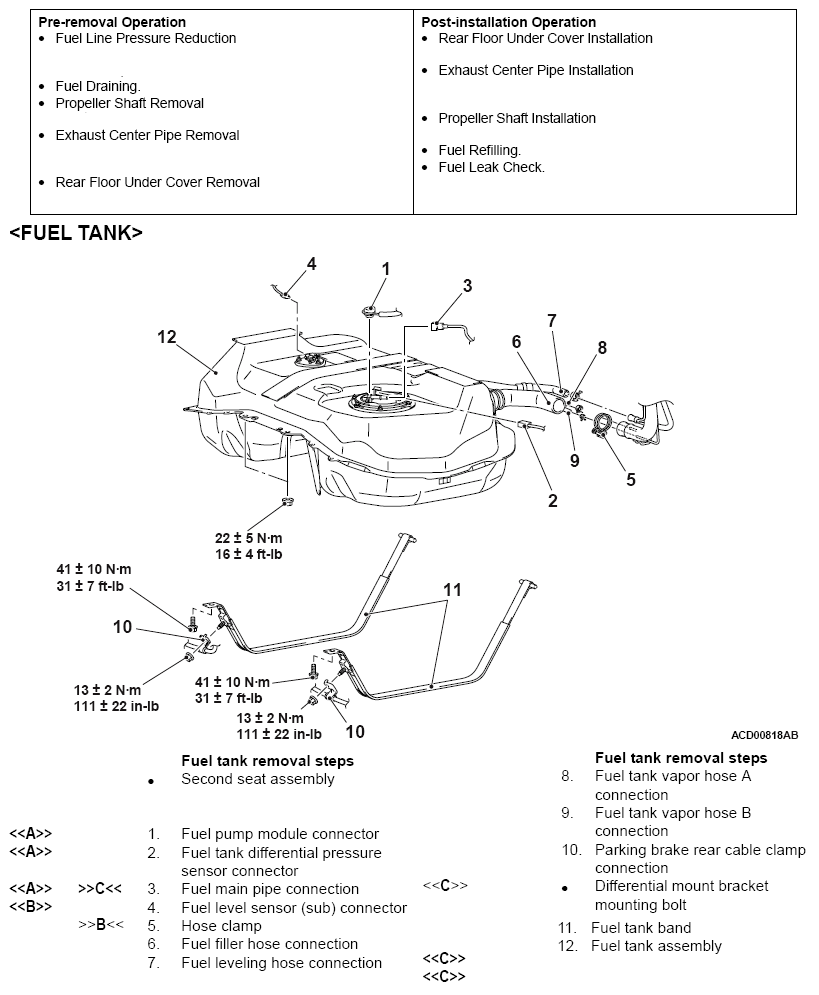

Fig 1: Removing/Installing Fuel Tank With Torque Specification - AWD (1 Of 2)
G09664570Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Removing/Installing Fuel Tank With Torque Specification - AWD (2 Of 2)
G09664571Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
