<< A >> Exhaust Manifold Bracket

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not loosen the bolts other than shown.

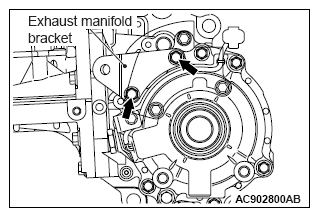

Fig 1: Locating Exhaust Manifold Bracket Mounting Bolts
G09665308Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
