<< C >> Engine Assembly Holding

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The engine hanger plate (special tool: MB992208) should be secured by tightening bolts with the engine hanger plate to the specified torque (If the other bolts are used, the engine assembly may fall down when it is raised.)

Tightening torque: 22 ± 4 N.m (16 ± 2 ft-lb)

  1. Remove the intake manifold plenum stay, rear on the right bank and the engine hanger on the left bank, and then install the engine hanger plate (Special tool: MB992208) to the place.

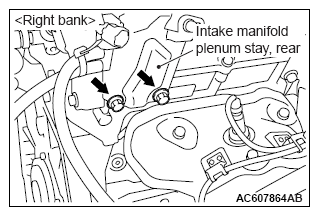

    Fig 1: Locating Intake Manifold Plenum Stay (Right Bank)
    G09665298Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 2: Locating Engine Hanger, Left Bank Heated Oxygen Sensor Connector (Left Bank)
    G09665299Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. < When engine hanger (Special tool: MB991928) is used >
    1. Assemble the engine hanger (special tool: MB991928). (Set the components below to the base hanger.)
      • Slide bracket (HI)
      • Foot x 4 (standard) (MB991932)
    2. Set the foot of the special tool as shown in the figure.
      NOTE: Adjust the engine hanger balance by sliding the slide bracket (HI).
      Fig 3: Adjusting Engine Hanger Balance By Sliding Slide Bracket (HI)
      G09665300Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    3. Connect the engine hanger (Special tool: MB991928) to the engine hanger (special tool: MB991527). Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.

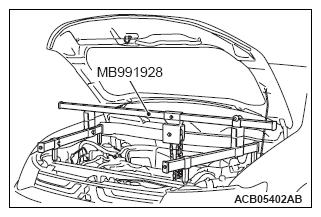

      Fig 4: Removing Transaxle Assembly Upper Part Coupling
      G09665301Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. < When engine hanger (Special tool: MB991895) and engine hanger attachment (Special tool: MB992906) are used >
    1. Set the foot of engine hanger (special tool: MB991895) as shown in the figure.
      NOTE: Slide the front foot of engine hanger (special tool: MB991895) to balance the engine hanger.
      Fig 5: Adjusting Foot Of Engine Hanger
      G09665302Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    2. Connect the engine hanger (Special tool: MB991895) to the engine hanger (special tool: MB991527). Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.

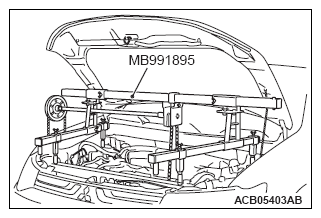

      Fig 6: Removing Transaxle Assembly Upper Part Coupling
      G09665303Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
