Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

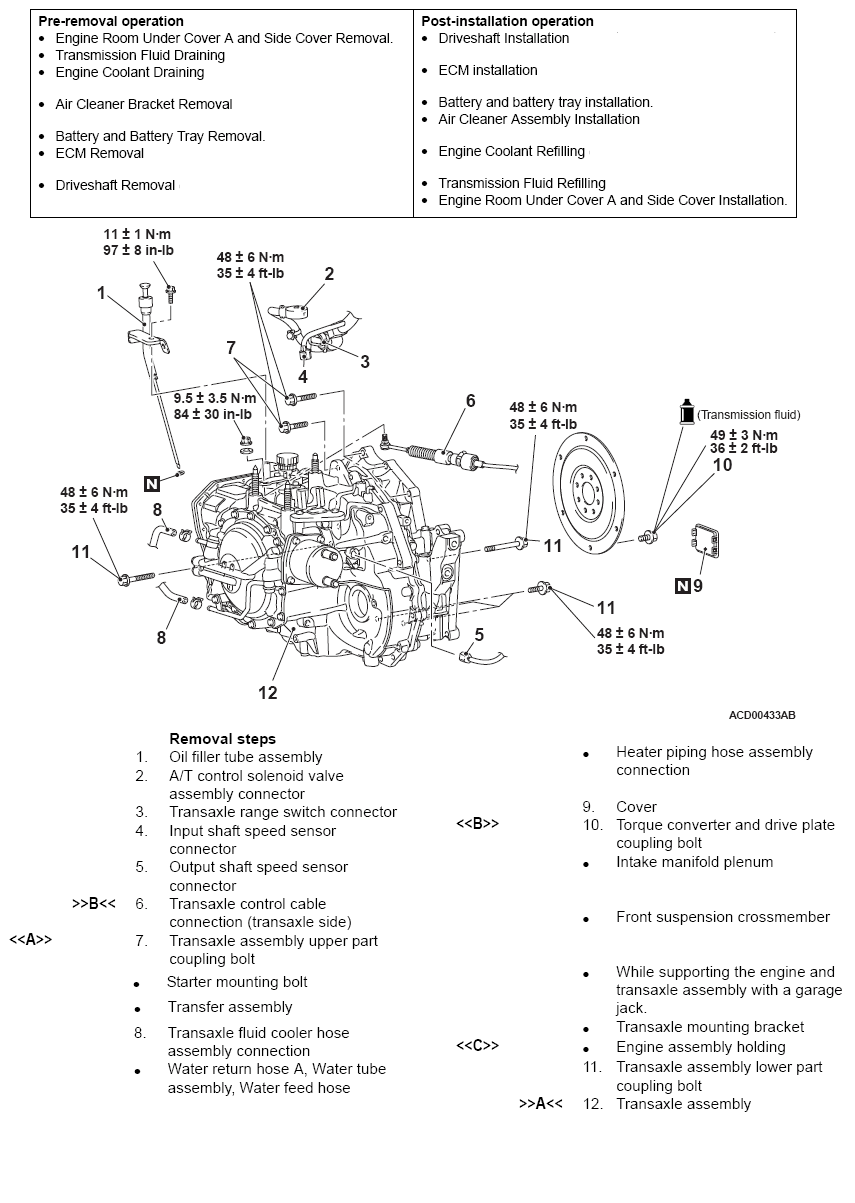

Fig 1: Removing/Installing Transaxle Assembly With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991454: Engine Hanger Balancer
MB991527: Engine Hanger
MB991895: Engine Hanger
MB991928: Engine Hanger
MB991932: Foot
MB992208: Engine hanger plate A
MB992906: Engine hanger attachment
