>> B << Transaxle Control Cable (Transaxle Side) Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the selector lever and manual control lever to the "N" position.
  2. Use the adjusting nut to tighten the transaxle control cable to the specified torque.

    Tightening torque: 9.5 ± 3.5 N.m (84 ± 30 in-lb)

    Fig 1: Identifying Crankshaft Position
    G09665305Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

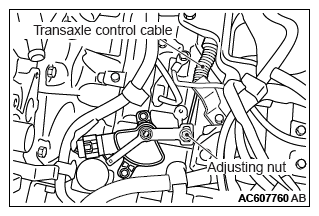

    Fig 2: Identifying Transaxle Control Cable And Adjusting Nut
    G09665306Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
