Special Tools

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
Tool Tool number and name Supersession Application

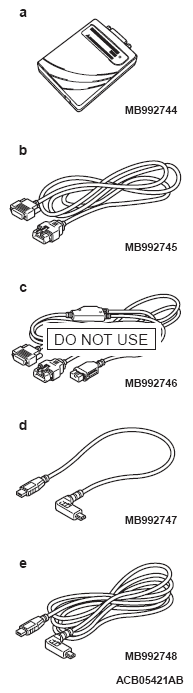

G09665253
  1. MB992744
  2. MB992745
  3. MB992746
  4. MB992747
  5. MB992748

  1. Vehicle communication interface-Lite (V.C.I.-Lite)
  2. V.C.I.-Lite main harness A (for vehicles with CAN communication)
  3. V.C.I.-Lite main harness B (for vehicles without CAN communication)
  4. V.C.I.-Lite USB cable short
  5. V.C.I.-Lite USB cable long
 - Checking diagnostic trouble codes

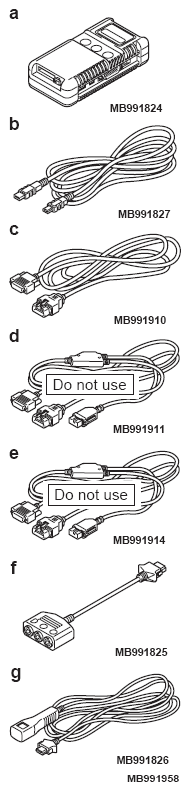

G09665254
 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826

M.U.T.-III sub assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Chrysler models only)
  6. M.U.T.-III measurement adapter
  7. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III trigger harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
Checking diagnostic trouble codes
G09665255
 MB992006
Extra fine probe		 - Making voltage and resistance measurement during troubleshooting
G09665256
 MD998330 (Includes MD998331)
Oil pressure gauge (3.0 MPa, 427 psi)		 MD998330-01 Measurement of hydraulic pressure
G09665257
 MB992127
Joint		 -
G09665258
 MB995062
Flushing tool		 MLR-6906-C or Equivalent Flushing cooler and tube
G09665259
 MB991454
Engine hanger balancer		 MZ203827-01 Engine assembly support during transaxle assembly removal and installation {For the engine hanger balancer (MB991454), use chains only.}
NOTE: Engine hanger balancer (MB991454) is a part of the engine hanger assembly (MB991453).
G09665260
 MB991527
Engine hanger		 -
G09665261
 MB991895
Engine hanger		 Tool not available
G09665262
 MB992906
Engine hanger attachment		 Tool not available
G09665263
 MB991928
Engine hanger
  1. MB991929 Joint (50) x2
  2. MB991930 Joint (90) x2
  3. MB991931 Joint (140) x2
  4. MB991932 Foot (standard) x4
  5. MB991933 Foot (short) x2
  6. MB991934 Chain and hook assembly
 Tool not available
G09665264
 MB992208
Engine hanger plate A		 General Service Tool
