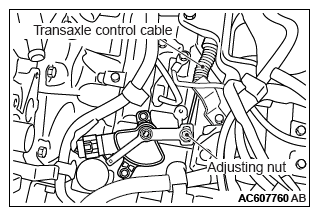

Transmission Range Switch Check
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
| Selector lever position | Terminal connection of tester | Specified condition |
|---|---|---|
| P | 3 - 2, 7 - 10 | Continuity exists (2 Ω or less). |
| Other than above | No continuity | |
| R | 3 - 9 | Continuity exists (2 Ω or less). |
| Other than above | No continuity | |
| N | 3 - 8, 7 - 10 | Continuity exists (2 Ω or less). |
| Other than above | No continuity | |
| D | 3 - 5 | Continuity exists (2 Ω or less). |
| Other than above | No continuity | |
| L | 3 - 1 | Continuity exists (2 Ω or less). |
| Other than above | No continuity |
